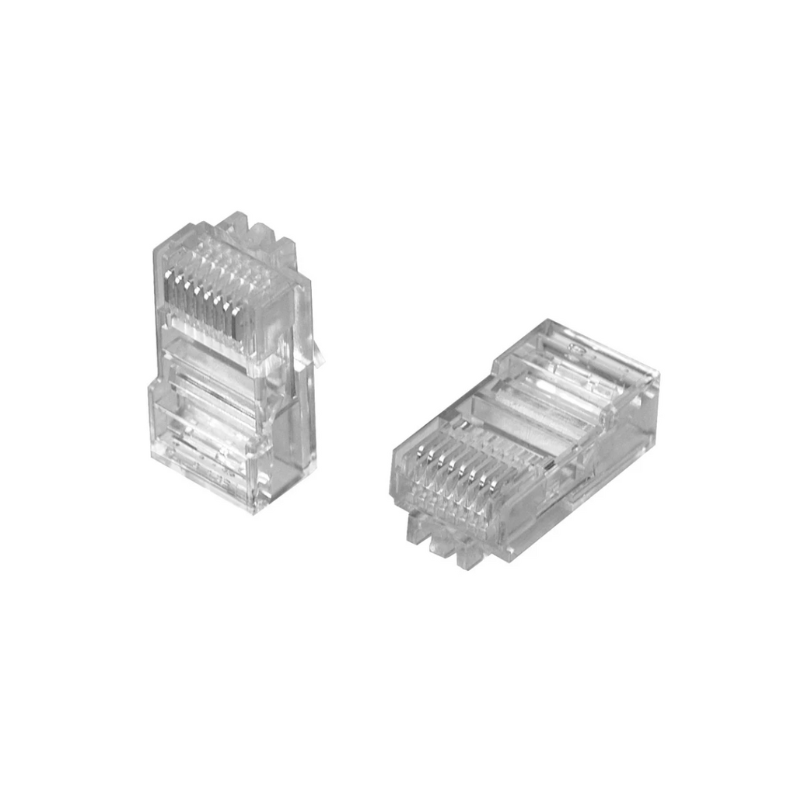

6-554720-3 US8P8C RJ45 PLUG

6-554720-3 US8P8C RJ45 PLUG

For RJ45 ｜ Cat 5E｜8/8｜IDC

• Product Type: Modular Plug
• ANSI Cat: 5
• Cable Type: Flat oval, Unshielded
• Conductor Type: Solid | Stranded
• Interface: RJ45
• Positions: 8/8

Dimensions:

• Compatible Cable Diameter (MAX): 8.89 mm | 0.35 in

• Compatible Cable Diameter (MIN): 2.54 mm | 0.10 in
• Compatible Insulated Conductor Diameter (MAX): 0.99 mm | 0.039 in
• Compatible Insulated Conductor Diameter (MIN): 0.86 mm | 0.034 in

Electrical Specifications:

• Current Rating: 0.75A (MAX)

• Insulation Resistance: 500mOHM (MIN)
• Safety Voltage Rating: 150Vac
