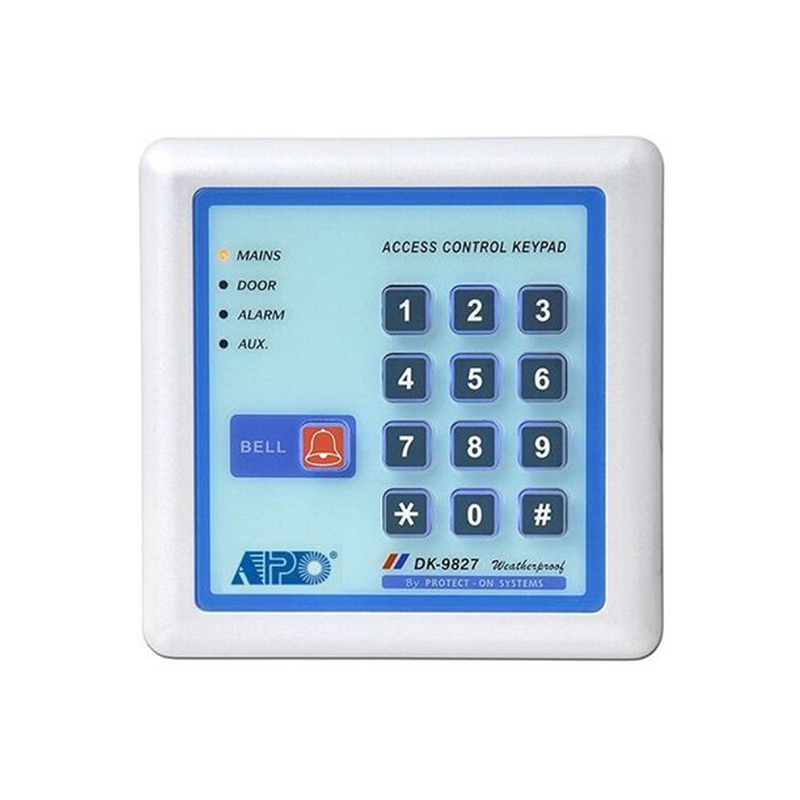

DK-9827 WEATHERPROOF KEYPAD

Operation Voltage: 12VDC

Operation Current: 16 – 78mA

Operation Mode: Multi User (120 codes) / Single User (1 code)

User Code Combinations: Multi User (Over 1.11 million) / Single User (10 thousand)

Output Contacts: Output 1 (Solid state 3A/12VDC), Output 2 (NC NO Dry contact 1A/24VDC) & Output 3 (NPN Open collector 100mA/24VDC)

Tamper Switch Contact: NC Dry contact 50mA/24VDC

Duress, Inter-lock & Key Active Output: NPN open collector to GND

Weatherproof: IP-54

Operation Temperature: -20°C – 70°C

Ambient Humidity: 5-95%

Dimensions: 117(H) x 117(W) x 28(D) mm

Weight: 230g net

Product Catalogue:

https://apo-hk.com/wp-content/uploads/2025/05/2024-Page-By-Page-Full-Product-Booklet-20241113.pdf
