SANWA
Low stock: 7 left
Couldn't load pickup availability

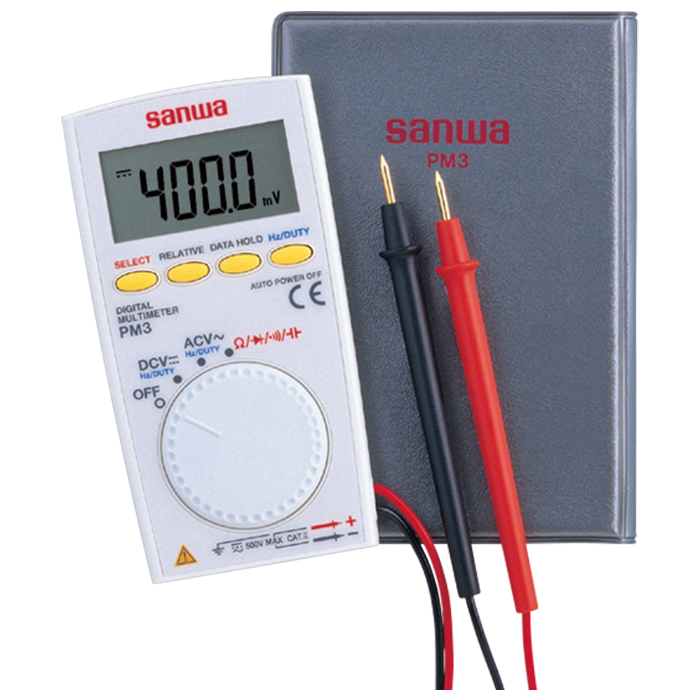

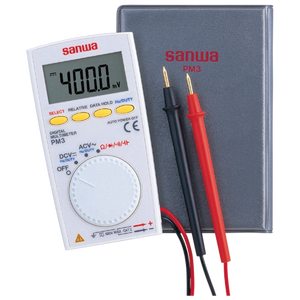

| PM3 | Measuring range | Best accuracy | Resolution | Input impedance |
|---|---|---|---|---|
| DCV | 400m/4/40/400/500V | ±(0.7%+3) | 0.1mV | 10M～100MΩ |
| ACV | 4/40/400/500V | ±(2.3%+5) | 0.001V | 10M～11MΩ |
| Resistance | 400/4k/40k/400k/4M/40MΩ | ±(2.0%+5) | 0.1Ω | |
| Capacitance | 5n/50n/500n/5μ/50μ/200μF | ±(5.0%+10) | 0.001nF | |
| Frequency | 9.999/99.99/999.9/9.999k/60.00kHz | ±(0.7%+5) | 0.001Hz | |
| Duty cycle | 0.1～99% | |||
| Continuity | Buzzer sounds at less than 10Ω～120Ω Open voltage:Approx.0.4V | |||
| Diode test | Open voltage:approx.1.5V | |||
| Display | numeral display 4000 |
| Sampling rate | 3 times/sec. |
| Bandwidth | 40～400Hz |
| Bettry | Coin type lithium battery CR2032(3V)x1 |
| Bettery life | Approx.150h at DCV |
| Size/Mass | H108×W56×D11.5mm/Approx.50g |
| Test lead length/Pin tip | Length: approx.0.5m/18mm |
| Safety | IEC61010 CAT.ⅡDC/AC500V |
